Yeastar P-Series Appliance Edition

A reliable, secure and features-rich IP PBX system for unified communications. It blends voice, video, messaging, and collaboration tools into one secure, scalable platform. On-premise deployment.

Yeastar P520

Max Users20
 Max Concurrent Calls10
  Max FXS Ports 4
  Max FXO/BRI Ports 4
  Max GSM/3G/4G Ports 1
Max E1/T1/J1 Port -
 Form FactorDesktop/Wall-mount
 Retail Price  PGK2,750.00 (incls. 10% GST)
 Wholesale Price Contact us now

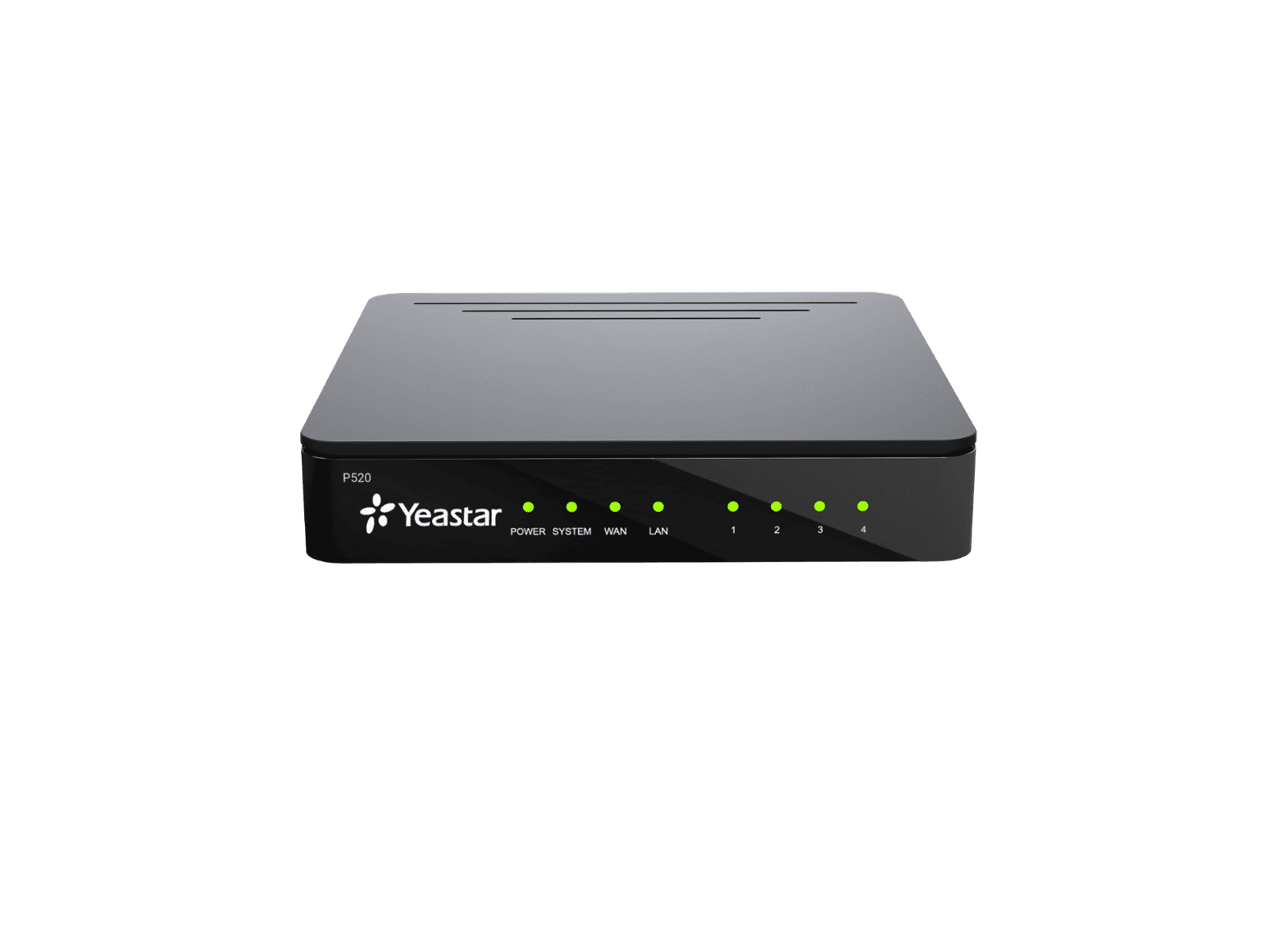

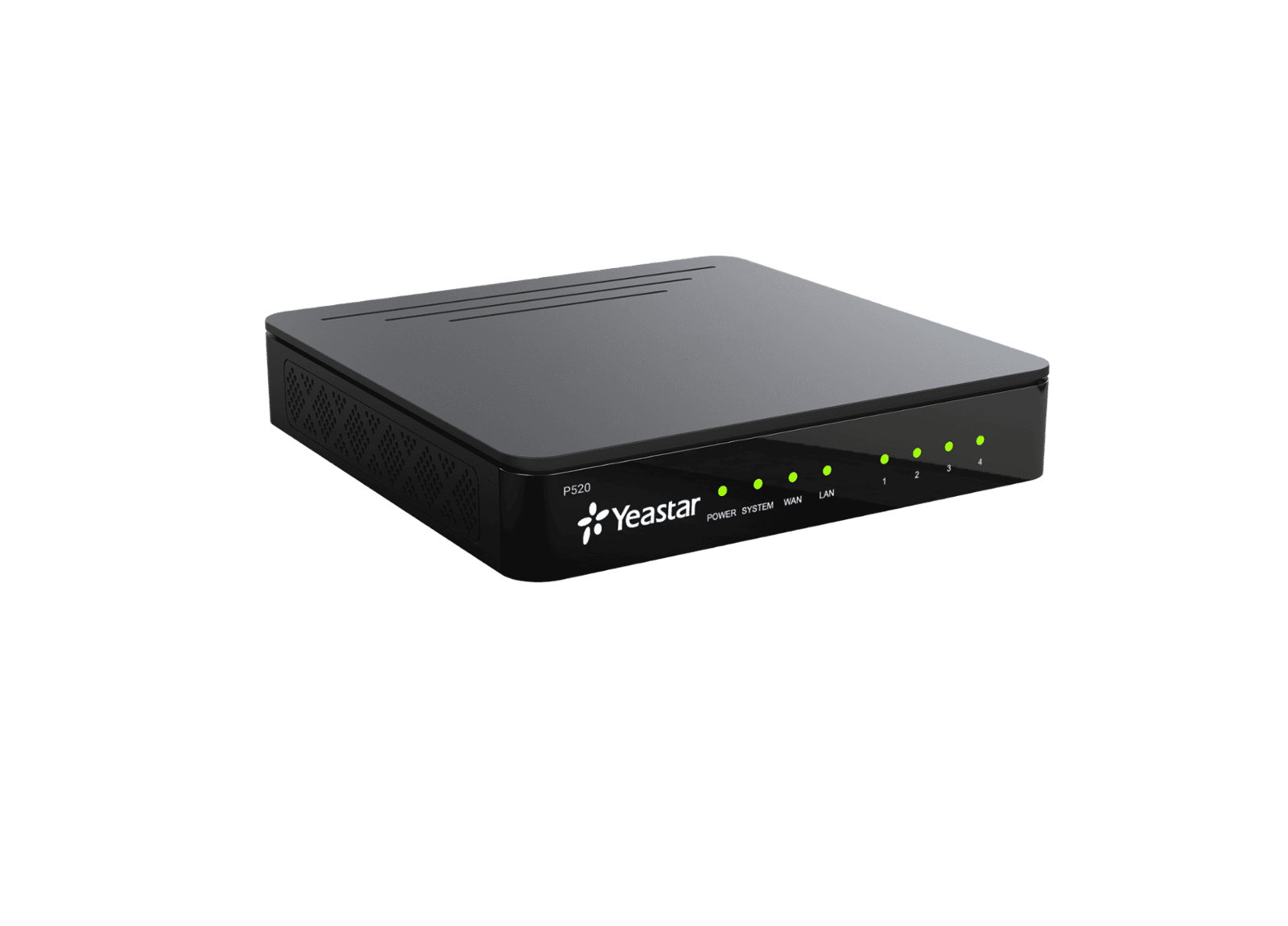

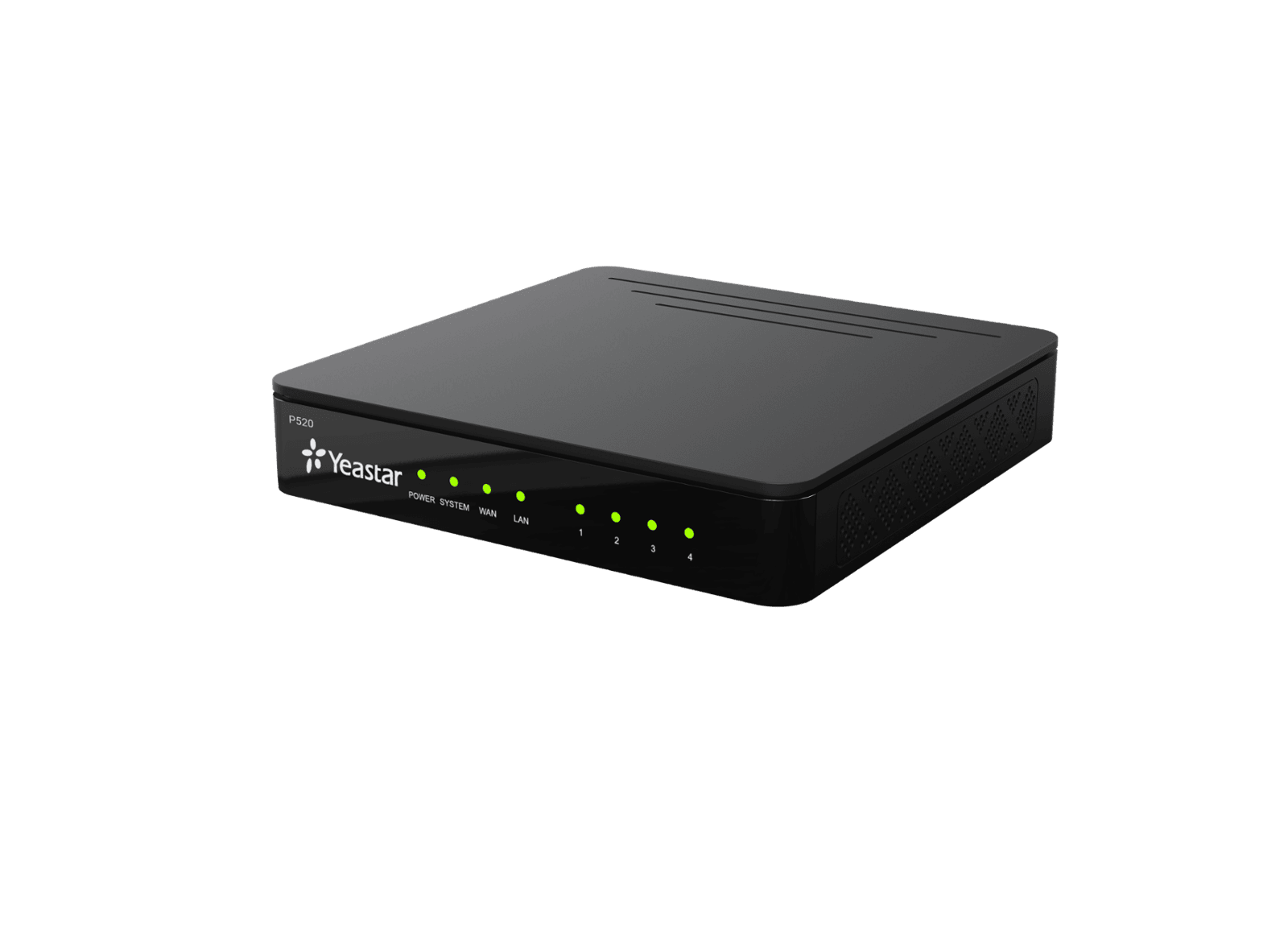

P520 front

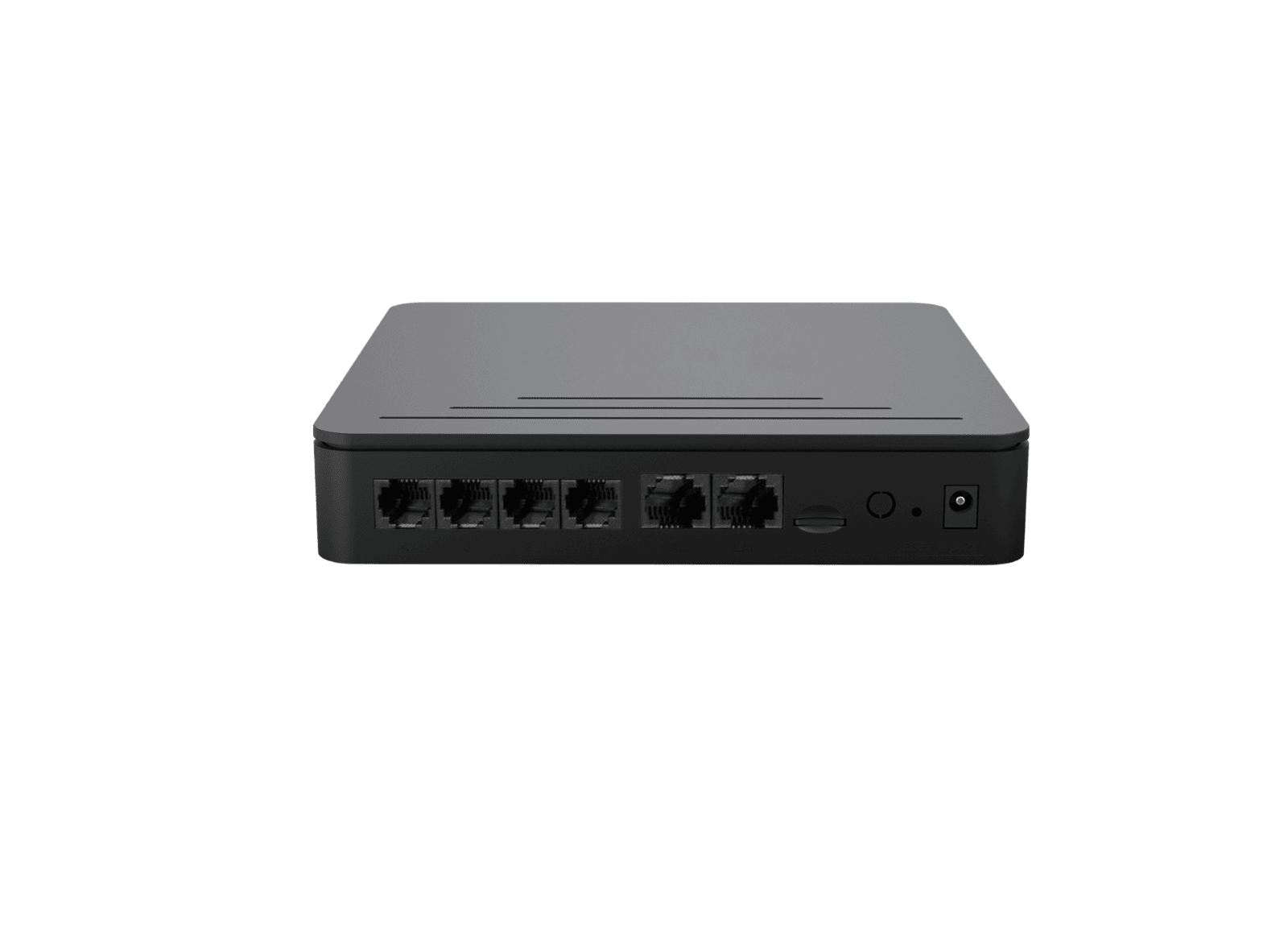

P520 back
Notes:

- To get Max 4 FXO port, it require add-on of 2 unit of O2 Module.

- To get Max 4 FXS port, it require add-on of 2 unit of S2 Module.

- To get Max 4 BRI port, it require add-on of 2 unit of B2 Module.

- To get Max 1 GSM/3G/4G port, it require add-on of 1 unit of 4G LTE Module.

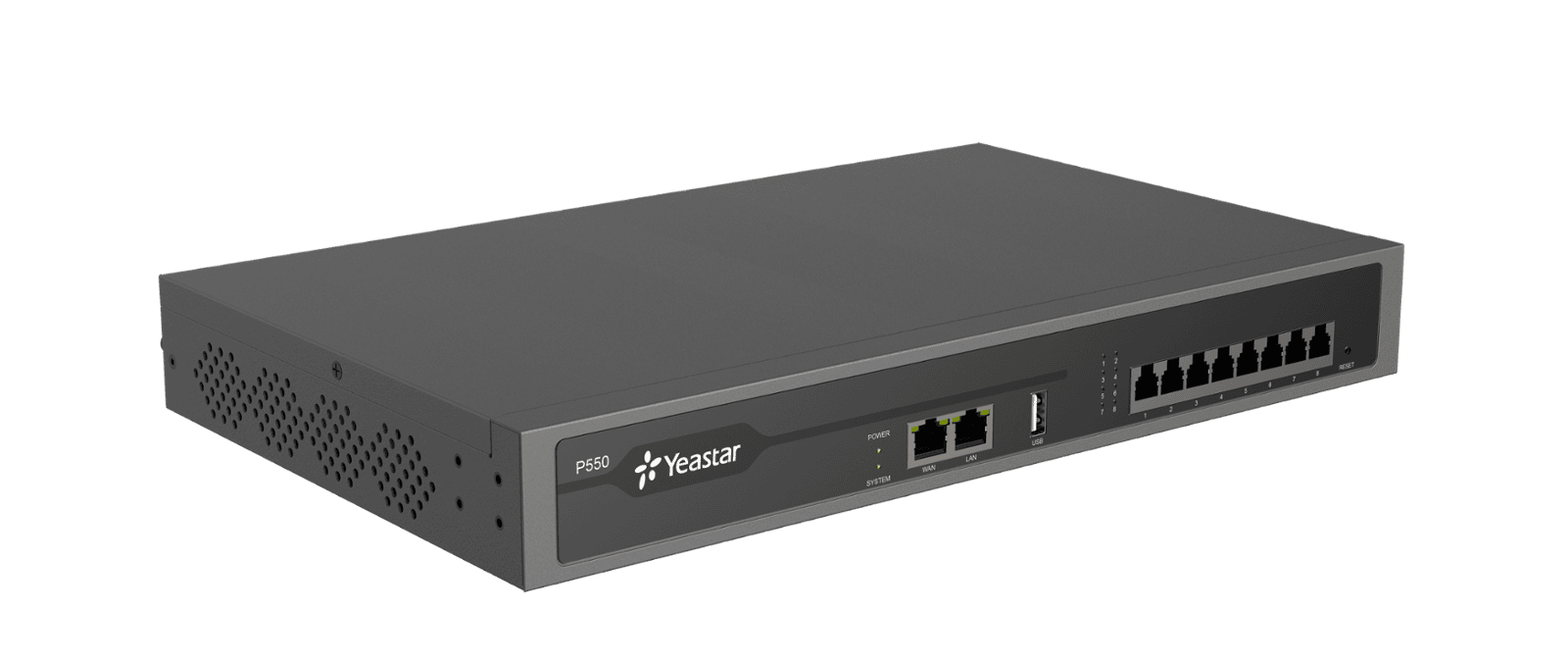

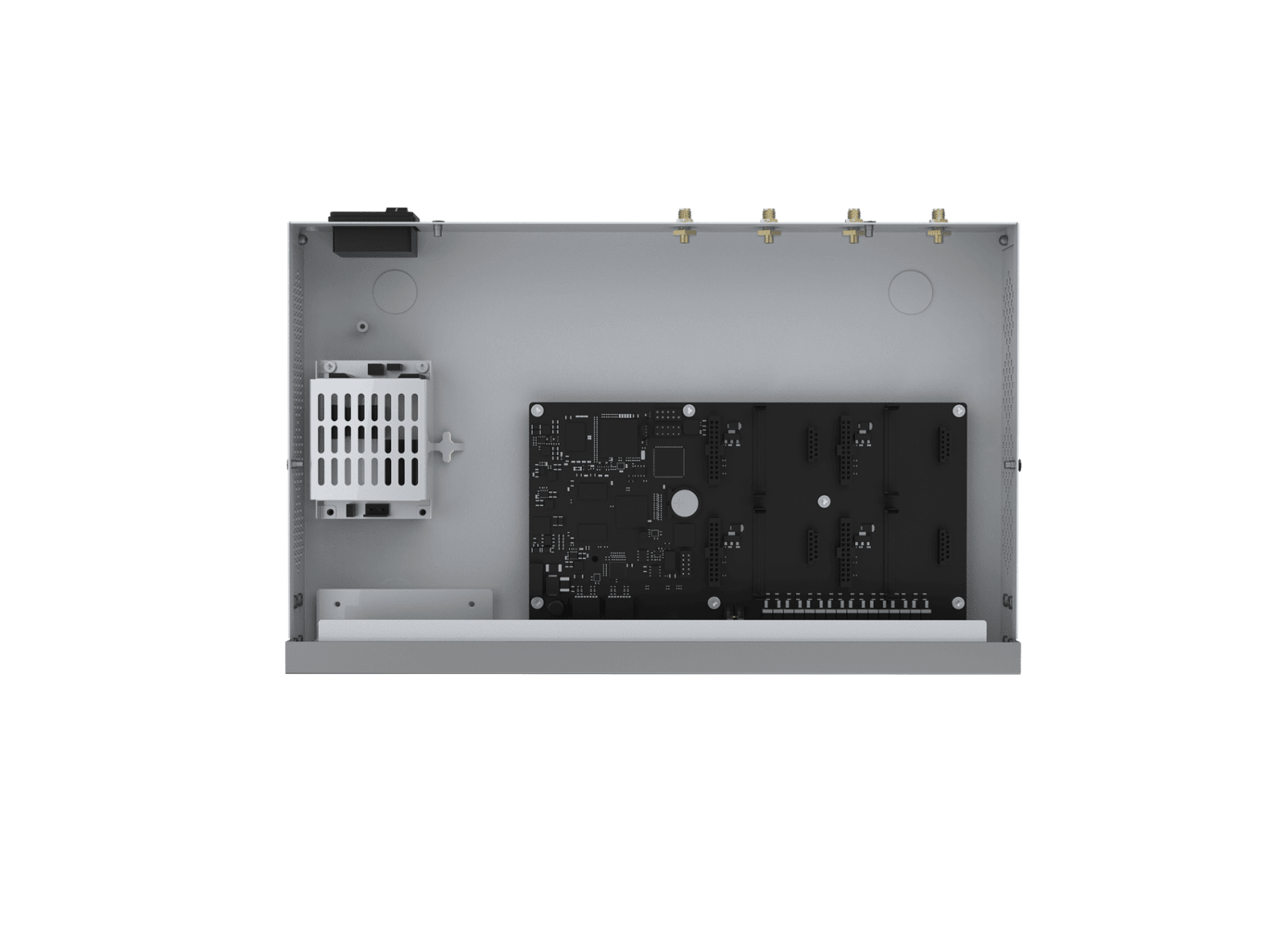

Yeastar P550

 Max Users50
Max Concurrent Calls25
  Max FXS Ports 8
  Max FXO/BRI Ports 8
  Max GSM/3G/4G Ports 4
Max E1/T1/J1 Port -
 Form Factor1U Rackmount
 Retail Price  Contact us for pricing!!!
 Wholesale Price Contact us now

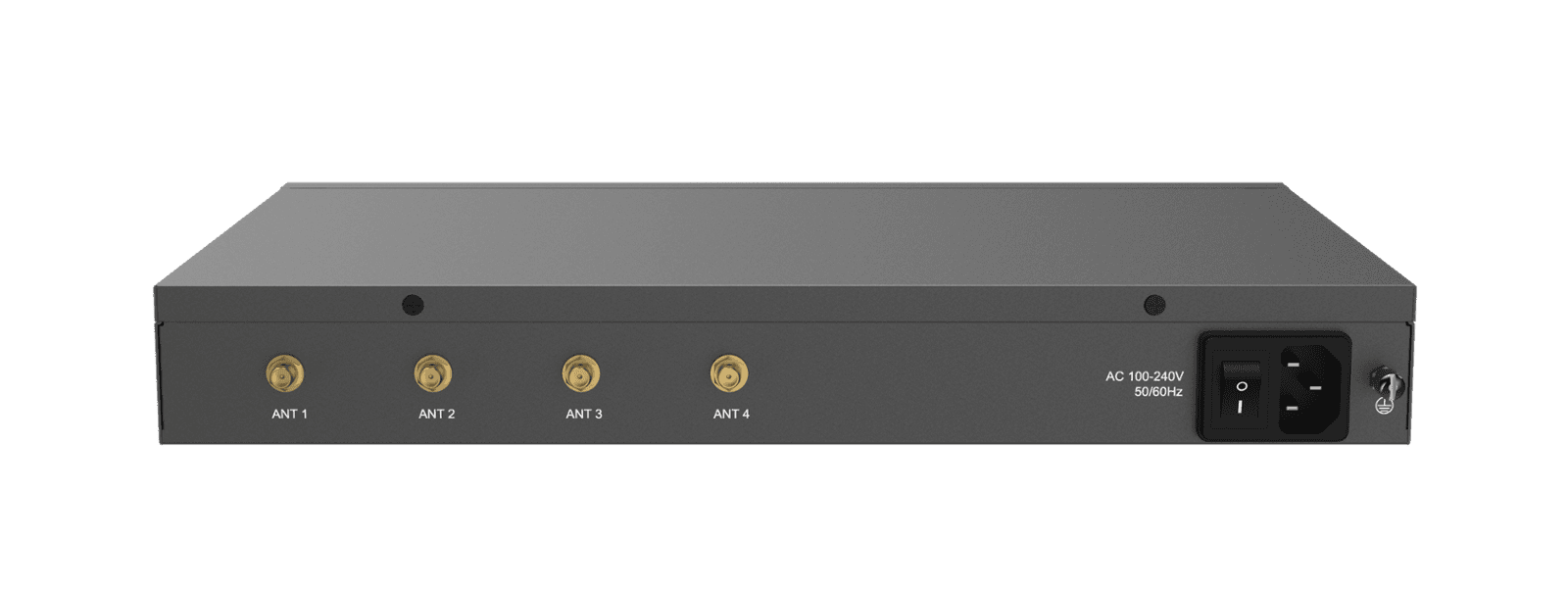

P550 back

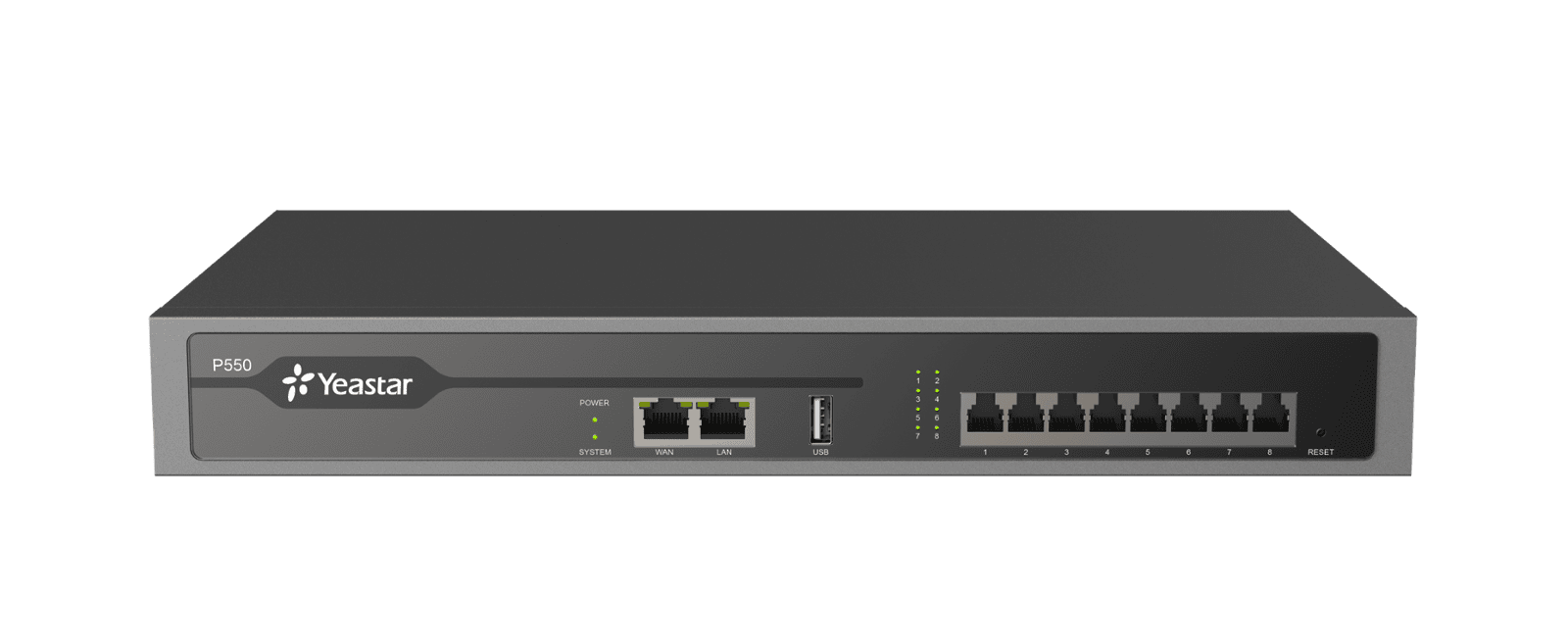

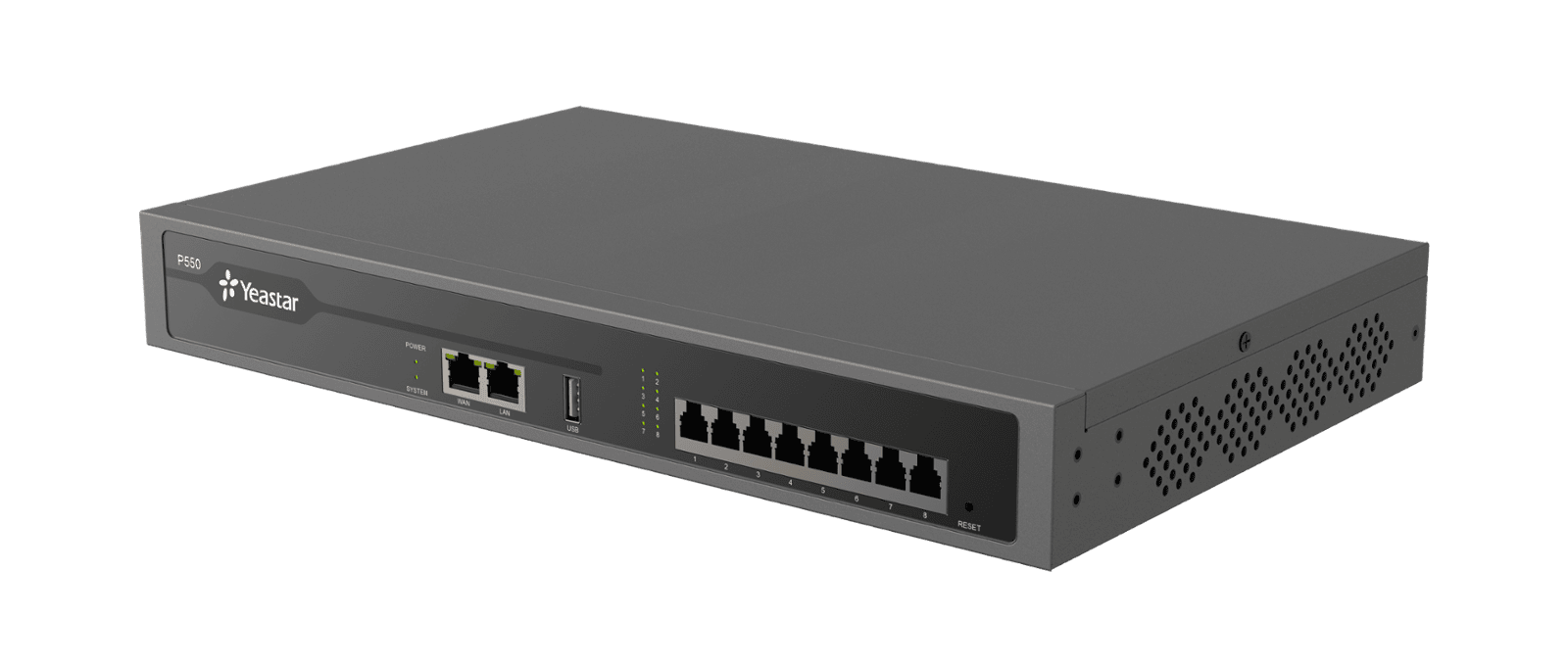

P550 front
Notes:

- To get Max 8 FXO port, it require add-on of 4 unit of O2 Module.

- To get Max 8 FXS port, it require add-on of 4 unit of S2 Module.

- To get Max 8 BRI port, it require add-on of 4 unit of B2 Module.

- To get Max 4 GSM/3G/4G port, it require add-on of 4 unit of 4G LTE Module.

Yeastar P560

Base Users/Max Users100/200
 Base/Max Concurrent Calls30/60
  Max FXS Ports 8
  Max FXO/BRI Ports 8
  Max GSM/3G/4G Ports 4
Max E1/T1/J1 Port 1
 Form Factor1U Rackmount
 Retail Price  Contact us for pricing!!!
 Wholesale Price Contact us now

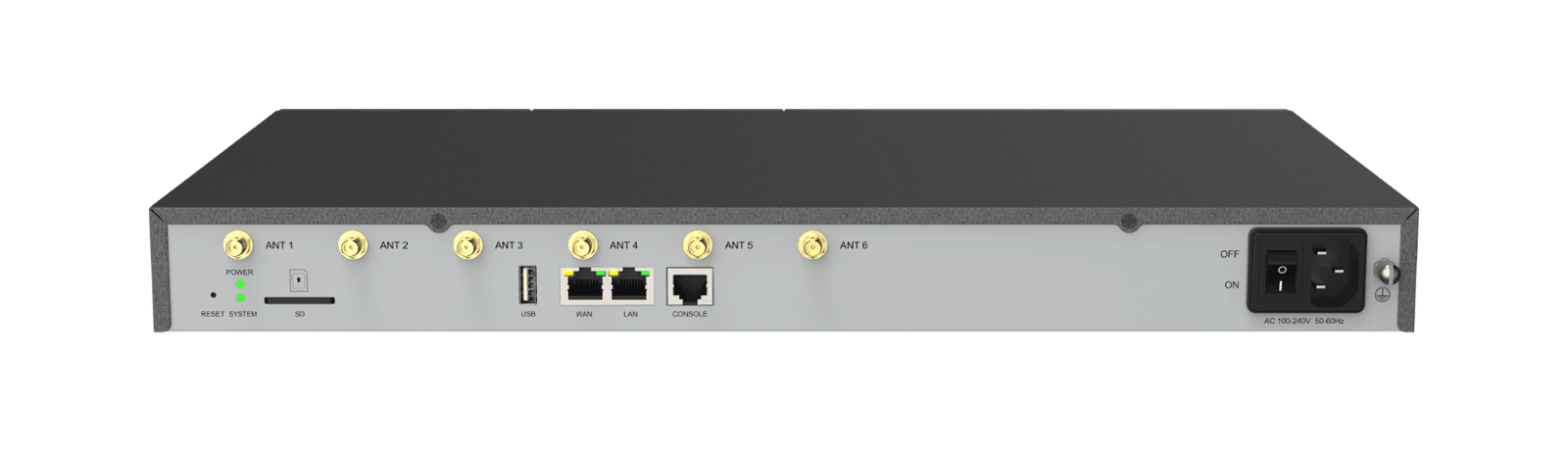

P560 back

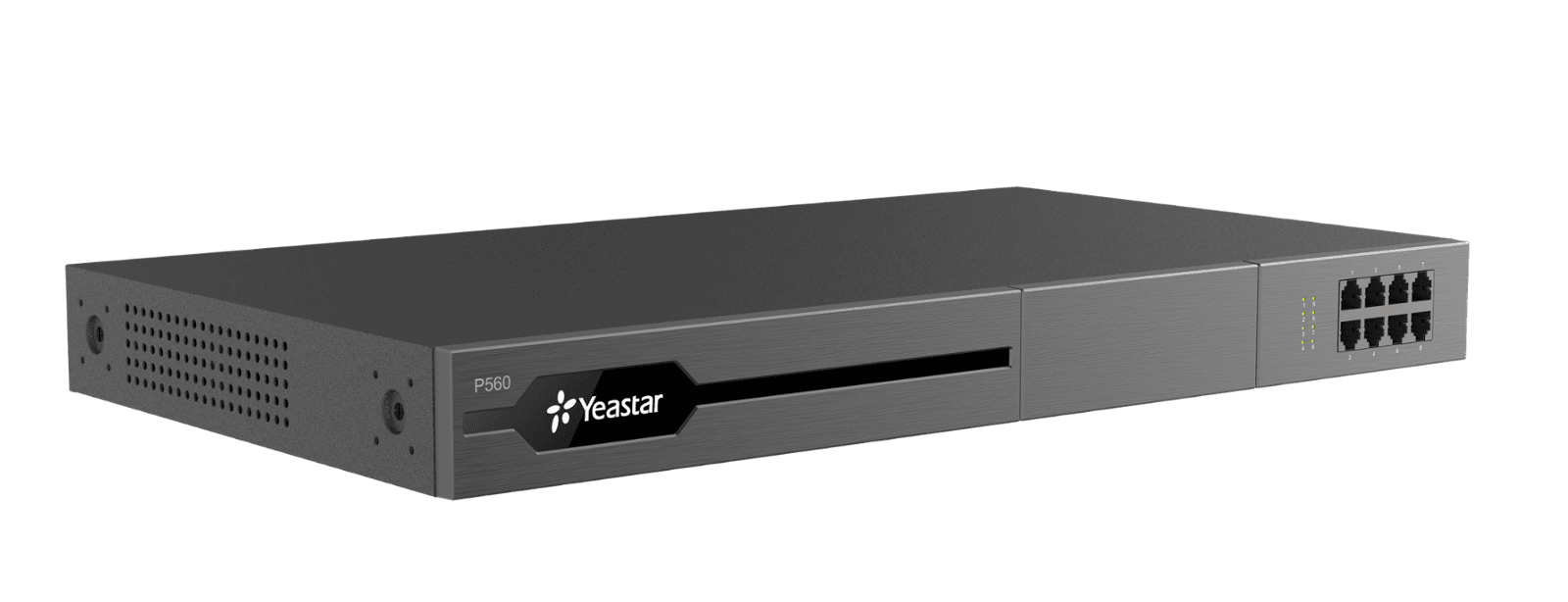

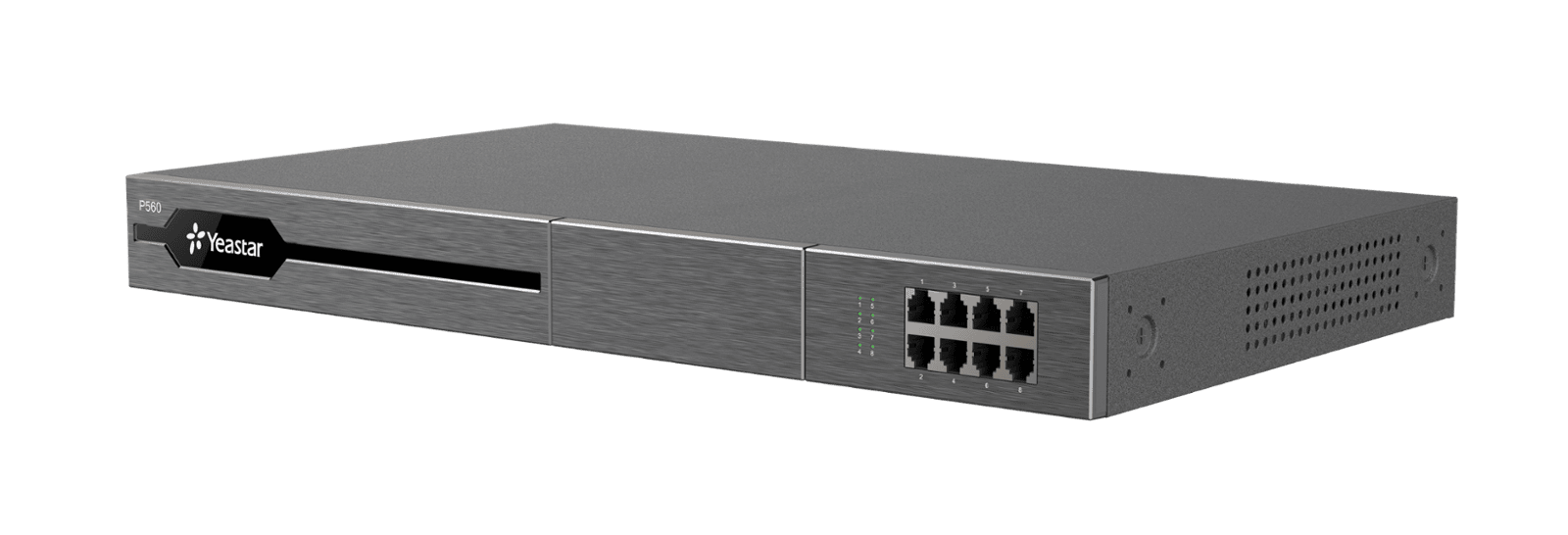

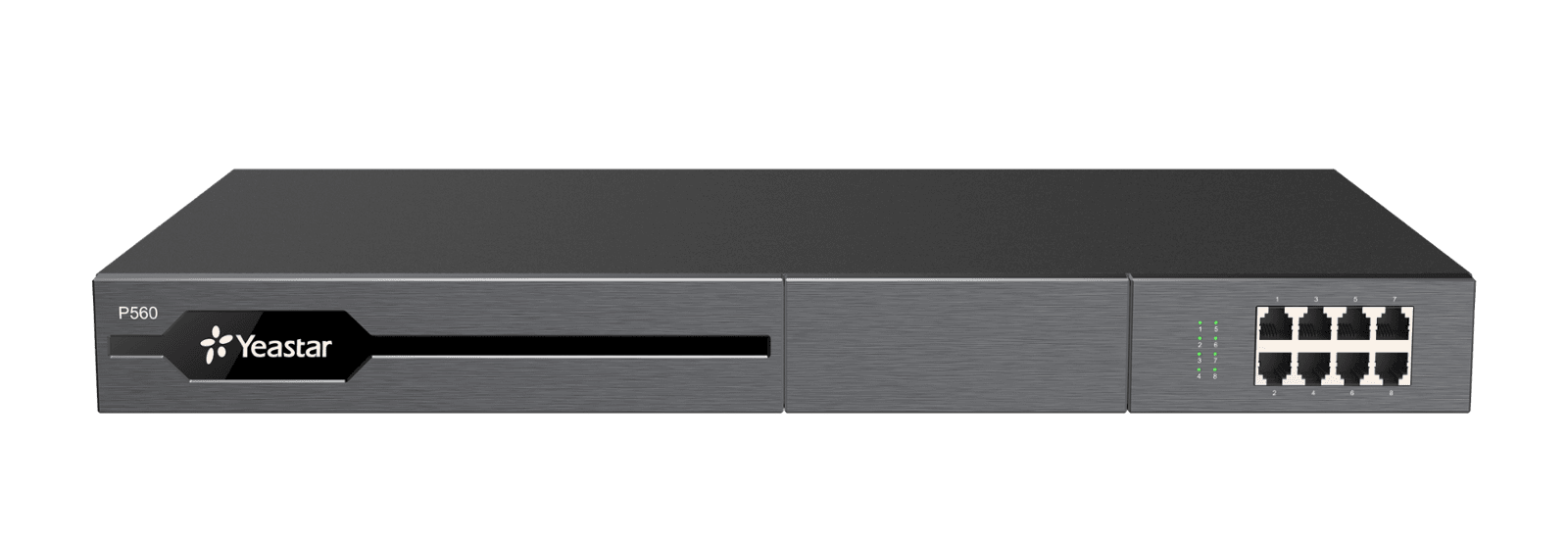

P560
Notes:

- To get Max 200 extension and 60 concurrent calls, it require add-on of 1 unit of D30 Expansion Module.

- To get Max 8 FXO port, it require add-on of 1 unit of EX08 Expansion Board and 4 unit of O2 Module.

- To get Max 8 FXS port, it require add-on of 1 unit of EX08 Expansion Board and 4 unit of S2 Module.

- To get Max 8 BRI port, it require add-on of 1 unit of EX08 Expansion Board and 4 unit of B2 Module.

- To get Max 4 GSM/3G/4G port, it require add-on of 1 unit of EX08 Expansion Board and 4 unit of 4G LTE Module.

- To get 1 E1/T1/J1 port, it require add-on 1 unit of EX30 Expansion Board.

Yeastar P570

Base Users/Max Users300/500
 Max Concurrent Calls120
  Max FXS Ports 16
  Max FXO/BRI Ports 16
  Max GSM/3G/4G Ports 6
Max E1/T1/J1 Port 2
 Form Factor1U Rackmount
 Retail Price  Contact us for pricing!!!
 Wholesale Price Contact us now

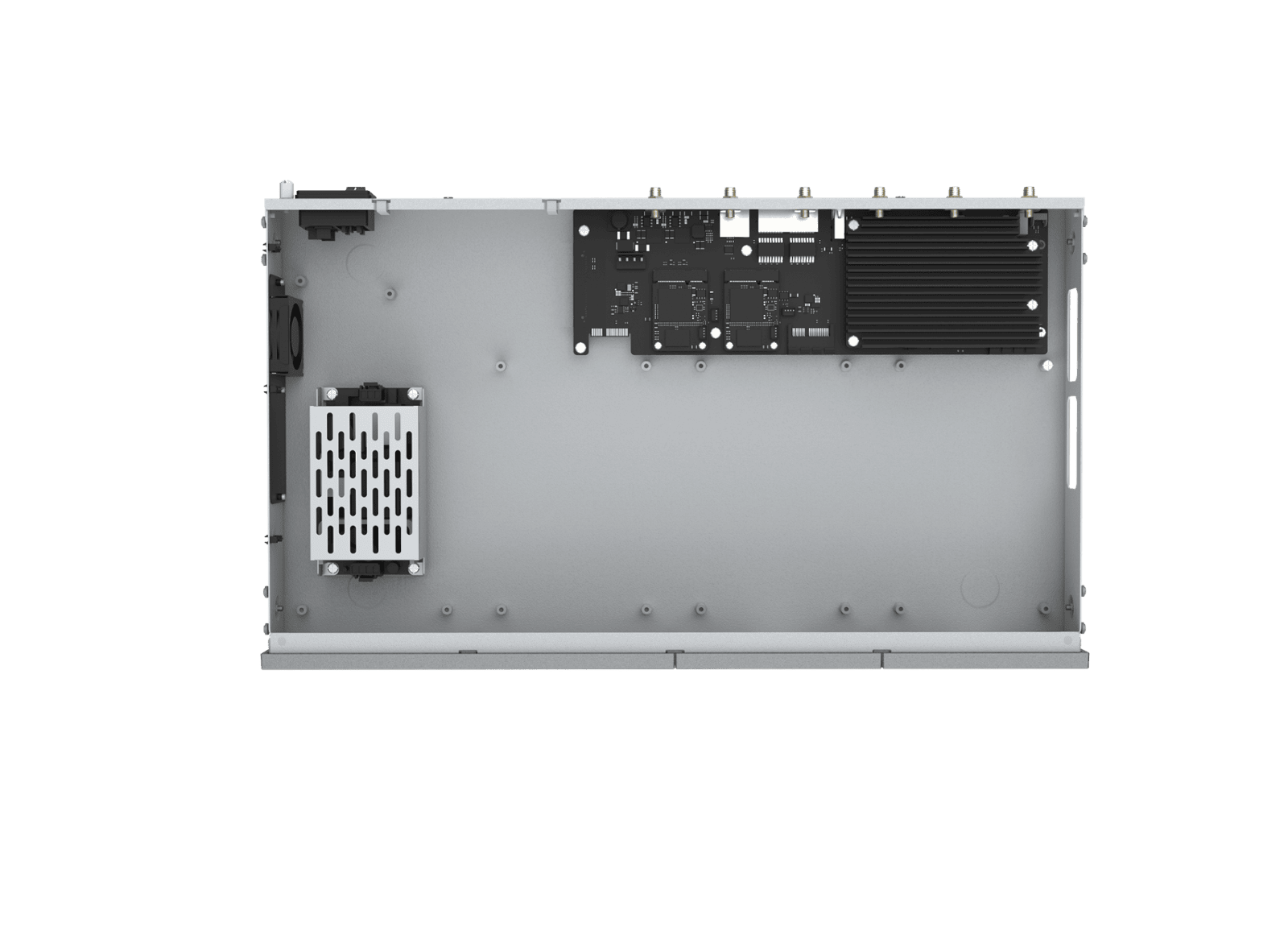

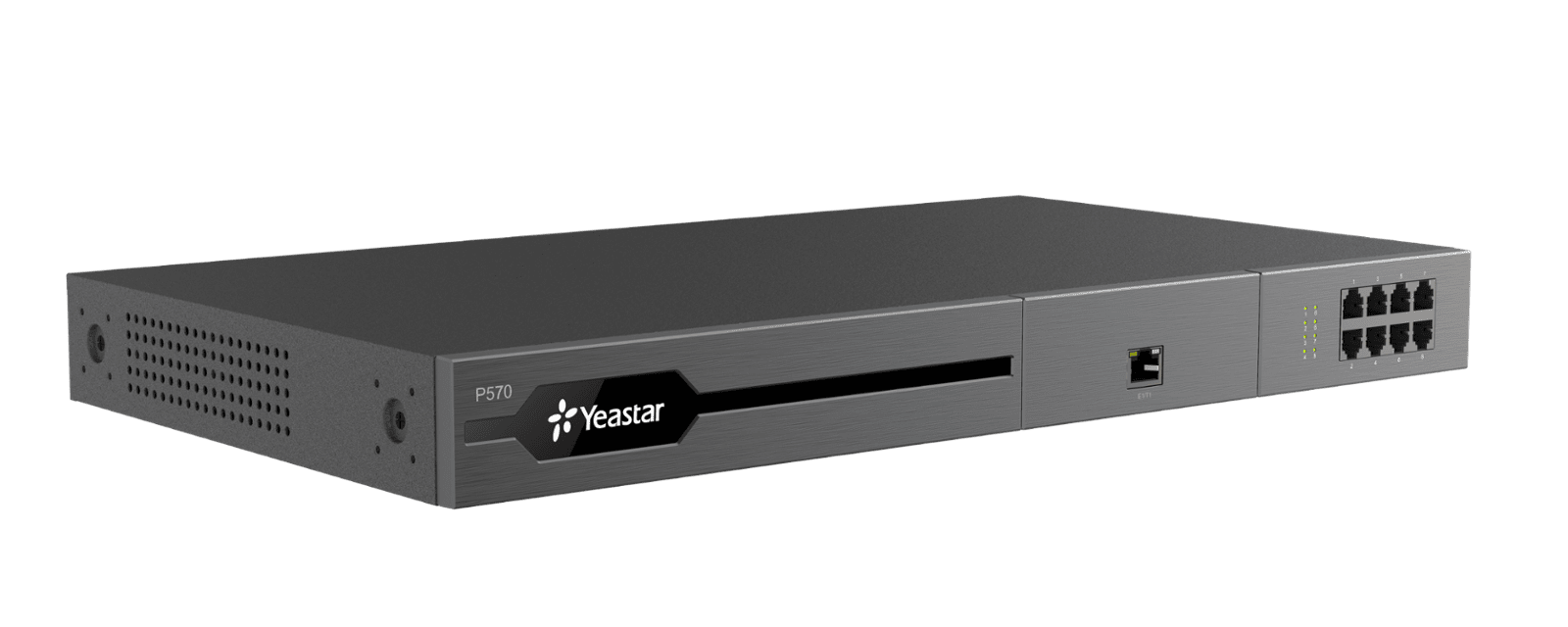

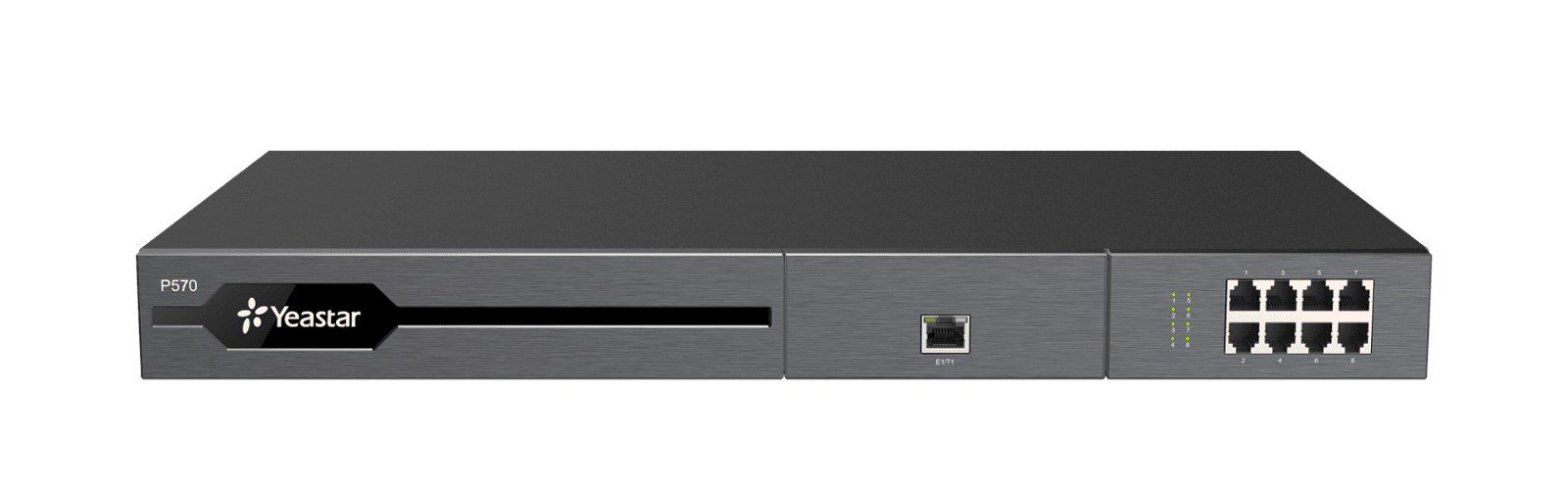

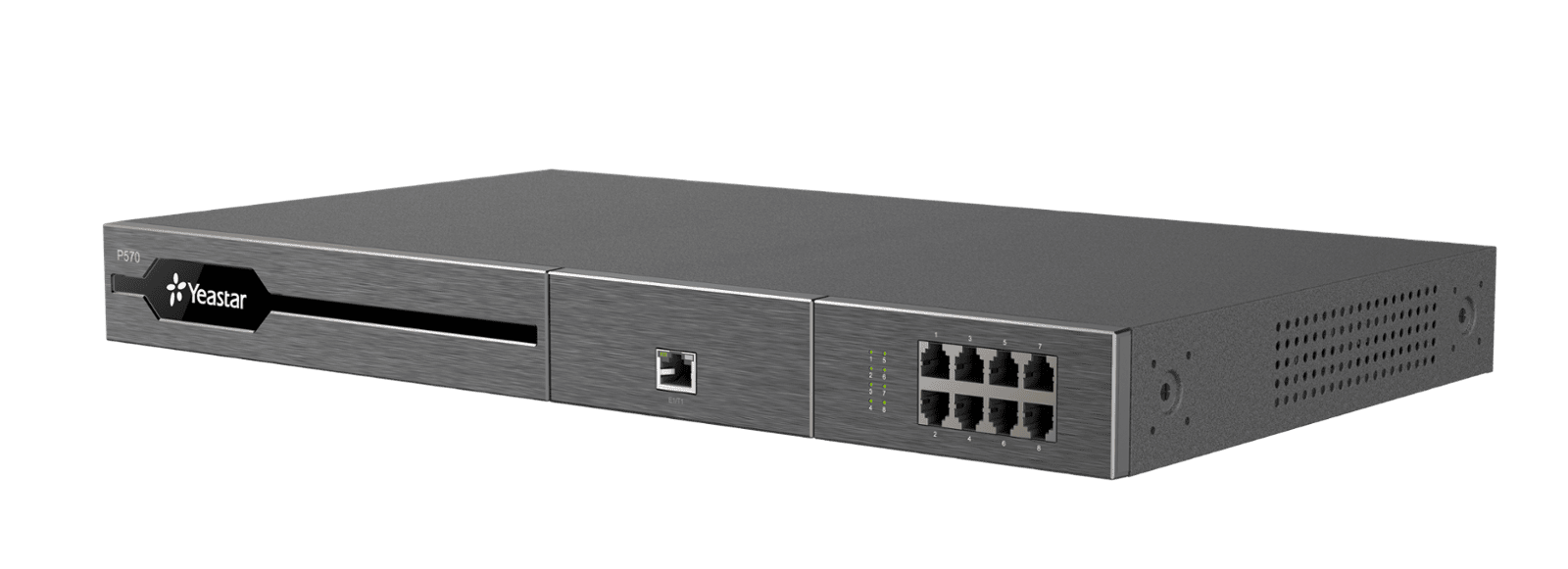

P570
Notes:

- To get Max 300 extension and 120 concurrent calls, it require add-on of 2 unit of D30 Expansion Module.

- To get Max 16 FXO port, it require add-on of 2 unit of EX08 Expansion Board and 8 unit of O2 Module.

- To get Max 16 FXS port, it require add-on of 2 unit of EX08 Expansion Board and 8 unit of S2 Module.

- To get Max 16 BRI port, it require add-on of 2 unit of EX08 Expansion Board and 8 unit of B2 Module.

- To get Max 6 GSM/3G/4G port, it require add-on of 2 unit of EX08 Expansion Board and 6 unit of 4G LTE Module.

- To get 2 E1/T1/J1 port, it require add-on 2 unit of EX30 Expansion Board.

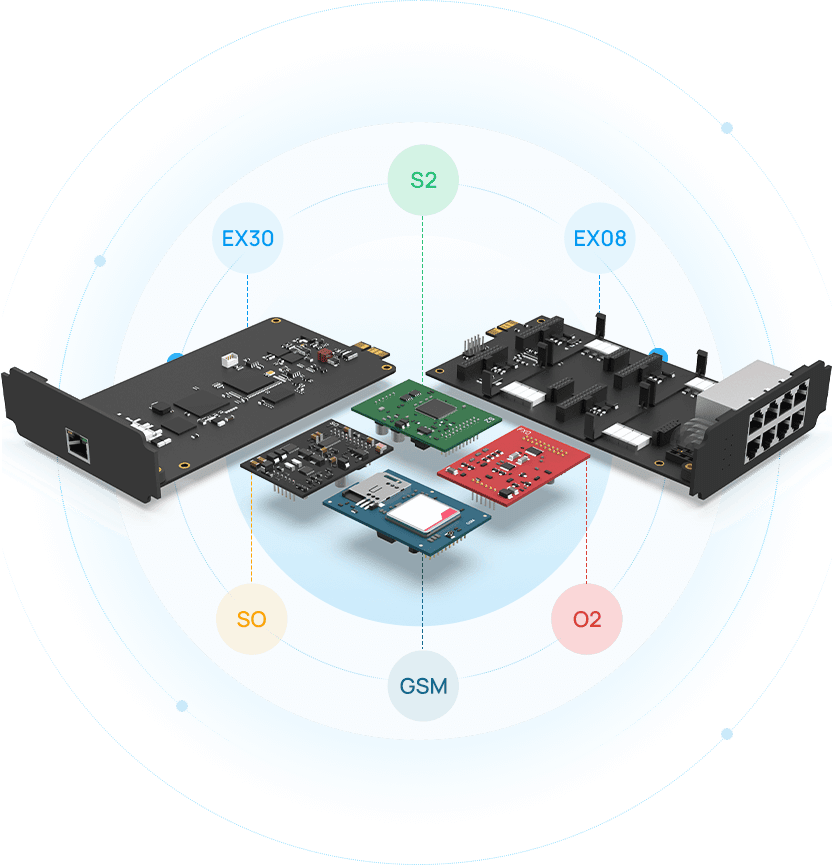

Modules & Expansion Board

Yeastar P-Series PBX System provide flexible telephony interfaces combination while allowing for future scalability with unique modular design.

Button

Basic PBX Features

All PAE models comes with Basic Features. No license fees or subscription fees needed.

Telephony features
  • Call Routing
  • Call Forwarding
  • Call Parking/Pickup
  • Call Transfer (Attended/Blind)
  • Call Waiting
  • Call Flip/Switch
  • Ring Group
  • Paging/Intercom
  • Caller ID
  • Dial by Names
  • SpeedDial
  • AutoCLIP
  • CID/DID based Routing
  • Direct Inward/Outward Dialing
  • DNIS
  • DND (Do Not Disturb)
  • Custom Prompts
  • Distinctive Ringtone
  • Music On Hold
  • MOH Playlist & STreaming
  • CDR & Basic Call Report
Business features
  • Call Operator Panel View
  • Desk Phone Control (CTI)
  • BLF Support
  • Busy Camp on
  • Business Hours & Holidays
  • Multi Time zones
  • Boss-Secretary
  • Hot Desking
  • Emergency Calling
  • Feature Code
  • Function Key
  • LDAP Server
  • TAPI Driver
Administration features
  • Web admin portal & dashboard
  • Extension Group & Organization
  • User Role & Permission
  • IP-Phone Auto Provisioning
  • SIP Forking
  • Event Logs & Notifications
  • Troubleshooting
  • Backup & Restore
  • Built-in SMTP Server
  • Network Drive
  • SNMP Support
  • Split DNS
  • Hot Standby (requires an additional redundancy server)
Call Centre features (Basic)
  • Call Recording
  • Listen/Whisper/Barge-in Monitoring
  • IVR
  • Queue
  • Queue Priority & Acceleration
  • Queue Announcement
  • Queue Call Logs & Missed Call Deposition
Security features
  • SRTP * TLS Encryption
  • Auto & Static Defense
  • Global Anti-hacking IP Blocklist
  • Allowed Country IP & Codes
  • Outbound Call Frequency Restriction
  • Password Policy Enforcement
  • Two-factor Authentication (2FA)
Unified Communication features
  • Linkus UC App
  •     - Web Client
  •     - Mobile (IOS & Android)
  •     - Desktop (Windows & Mac OS)
  •     - Google Chrome Extension
  • Presence & Custom Messages
  • Auto Conferencing
  • T.38 Fax
  • Fax to email
  • Voicemail
  • Voicemail to email
  • Voicemail transcription (requires integration with Google Cloud Speech-to-text services)
  • Group Voicemail
  • Personal & Company Contact
  • Call Pop-up URL
  • Headset integration
  • Open APIs (not supported by P520)

Advanced Features

Subscribe a Monthly or Yearly subscription to enable the Advanced Features.

30 Days Free Trials is available. No credit card required.

Plan Pricing
Basic PBX featuresFree of charge (built-in with all P-series Appliance Edtion)
 Standard Plan Contact us for pricing
 Enterprise Plan Contact us for pricing
 Ultimate Plan Contact us for pricing

Datasheet

To learn more about the detailed specifications of Yeastar P-Series Appliance Edition (PAE) PBX, please check out the Datasheet

Download

P-Series Software Edition

Already had your own server (on-premise)?

Or  want to deploy on public cloud

(AWS, Google Cloud, Azure & etc)?


Self-hosted and self-managed.

Everything under your control!


Please check out the Yeastar P-Series Software Edition.

Learn more

P-Series Cloud Edition

Want a hosted PBX system?

Please check out the Yeastar P-Series Cloud Edition.


Fully hosted and managed by Yeastar on AWS datacentre.

You choose the AWS datacentre's location.

Learn more

FAQ

Do you need to pay for license fees or subscription fees ?

Yeastar P-Series Appliance Edition

All Yeastar P-Series Appliance Edition (PAE) devices comes with built-in basic features. No further payment of license fees or subscription fees needed for basic features. The basic features are comprehensive and robust, delivering all that is typically required to meet the demands of most business users.

However, you want to enable the Advanced Features, a valid subscription plan is needed to enable the advanced features on your Yeastar's devices.


Refer our website for more information about the device's built-in Basic Features and Advanced Features based on subscription plan.


Free Trials of Subscription Plan

We can setup a 30 days free trials if you want to try out the Advanced Features with your Yeastar PAE device. If no subscription plan or renewal of subscription plan at the end of subscription period, your account will be downgraded and Advanced Features restricted.


You can upgrade, renew and downgrade your subscription plan anytime with us or your Yeastar reseller.

How does subscription works?

A valid subscription plan is needed to access the Advanced Features on your Yeastar P-Series Appliance Edition (PAE) Devices.


If no renewal of subscription plan at the end of subscription period, your plan will be downgraded to Basic and Advanced Features will be restricted and no-longer available.


You can upgrade, renew and downgrade your subscription plan anytime via us, Yeastar Distributor or your Yeastar reseller or at Yeastar's web portal.

What would happen if no subscription plan?

All Yeastar P-Series Appliance Edition (PAE) devices comes with built-in basic features with no subscription needed.


These basic features are comprehensive and robust. It should be able to meet your business's demands and requirements.


However, you want to enable the Advanced Features, a valid subscription plan is needed to enable the advanced features on your Yeastar's devices. Refer our website for more information about the device's built-in Basic Features and Advanced Features based on subscription plan.
